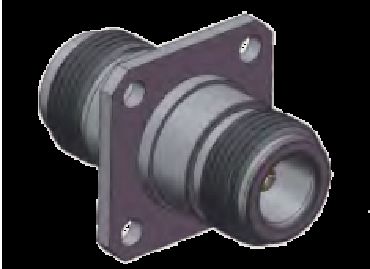

Copper Alloy Nickel Plating N Type 4 Hole Flange Panel Mount Jack to Jack Adapter 11GHz
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| مواد: | آلیاژ مس | جنس: | جک به جک |
|---|---|---|---|
| نام محصول: | N تایپ کنید جک به جک آداپتور | کلمات کلیدی: | اتصالات پانل فلنج 4 سوراخ |
| مورد: | آداپتور هم محوری RF | برنامه: | RF |
| آبکاری سطحی: | آبکاری | فرکانس: | 11 گیگاهرتز |
| برجسته کردن: | Copper alloy N type flange adapter,Nickel plating RF coaxial connector,4 hole panel mount jack adapter,Nickel plating RF coaxial connector,4 hole panel mount jack adapter |
||
Copper Alloy Nickel Plating N Type Straight 4 Hole Flange Mount Jack to Jack Coaxial Adapters Up To 11GHz
Product Introduction
The N-type connector is a threaded, medium-power connector distinguished by its high reliability, robust vibration resistance, and exceptional mechanical and electrical performance. It is specifically designed for connecting RF cables or microstrip lines in the RF circuits of microwave equipment and digital communication systems.
Boasting a wide frequency range, superior performance, and extended service life, this connector is widely utilized in radio equipment and instruments operating under vibrational or harsh environmental conditions. It also finds common application in ground transmission systems for RF coaxial cable connections. Its threaded design renders it particularly suitable for scenarios requiring high protection levels, as well as environments where other connectors fail to meet demanding requirements related to temperature, pressure, or vibration.
Specifications
| Product Model | N-KFK |
|---|---|
| Technical | Materials & Finish |
| Impedance: 50Ω | Center Conductor: Copper Alloy, Gold Plating |
| DWV: 1500V | Outer Conductor: Copper Alloy, Gold Plating |
| Insulation Resistance: >5000MΩ | Insulation Dielectric: PTFE |
| Temperature: Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | |
| Frequency Range: 0.3MHz~11GHz | |
Outline Drawing
Key Features
- High Versatility: Suitable for various RF and microwave devices and systems
- Wide Frequency Range: Supports signal frequencies from 0 to 11 GHz (enhanced types up to 18 GHz)
- Ease of Use: Plug-in connection method for easy connection and disconnection, reusable
- High Reliability: Excellent robustness and intermodulation performance
- High Mechanical Strength: Withstands high power, high voltage, and high-frequency environments
- Strong Anti-Aging Performance: Maintains stable performance in harsh conditions
- Excellent Contact and Signal Transmission: Low contact resistance ensures superior signal quality
- High Weather Resistance: Medium-sized screw-locking system provides excellent weather resistance
Applications
- Instrumentation
- Automotive
- Satcom
- Computer/LANs
- Telecommunications
- Avionics, radars
- Telecommunication systems
- Navigation systems
- Research centres
- Satellite communications
Packaging (for reference)
