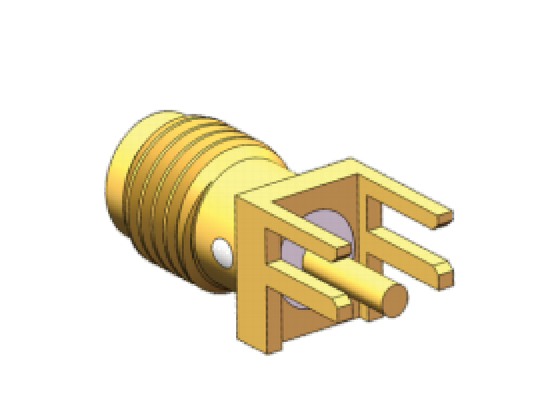

SMA RF Connector 18GHz Female Jack Edge Mount for PCB with Pin Diameter 0.3mm, 0.8mm, 1.3mm
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| نام محصول: | کانکتور RF SMA | مدل: | SMA-KHD12 |
|---|---|---|---|
| محدوده فرکانس: | 0.3 مگاهرتز - 18 گیگاهرتز | امپدانس: | 50 اهم |
| DWV: | 750 ولت | مقاومت عایق: | ≥5000MΩ |
| قطر: | 0.3 میلی متر، 0.8 میلی متر، 1.3 میلی متر .... | هادی مرکزی: | آلیاژ مس با آبکاری طلا |
| هادی بیرونی: | آلیاژ مس با آبکاری طلا | روش کوه: | Edge Mount |
| جنسیت: | جک | عایق ها: | PTFE |
| کاربرد: | برنامه PCB، تجهیزات تست RF، شاسی، مخابرات، سیستم رادار آرایه فازی، سیستم های هوشمند | ||
| برجسته کردن: | SMA RF connector edge mount PCB,SMA female jack 18GHz connector,SMA connector with pin diameter options,SMA female jack 18GHz connector,SMA connector with pin diameter options |
||
SMA RF Connector 18GHz Female Jack Edge Mount for PCB with Pin Diameter 0.3mm, 0.8mm, 1.3mm
Product Description
Our high-reliability SMA RF connectors deliver superior performance for demanding RF and microwave applications. They feature a precision miniaturized design supporting DC‑18 GHz, with ultra‑low insertion loss and return loss to preserve signal integrity.
Engineered with a robust threaded coupling, they provide excellent vibration resistance and stability in harsh environments, ideal for aerospace, automotive, high‑density PCBs, and compact microwave modules.
Their compact, lightweight form factor saves critical board space while ensuring consistent wideband performance. Built for durability and precision, our SMA connectors outperform conventional solutions for mission‑critical, high‑frequency systems.
Technical Data
Outline Dimension: Copper Alloy Gold Plating Jack PCB Edge Mount SMA RF Connector up to 18GHz Pin Diameter 0.3mm
Other SMA RF Connector Model: Accept Pin Diameter 0.3mm, Hole Depth 2mm
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packing & Shipping
Packaging: Each Copper Alloy SMA RF connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
RFQ:
Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .
Q2: What products can you provide currently?
A: SMA, SSMA, SMP, SMPM, ASMP( bigger than SMP ), CSMP( smaller than SMPM ), N, TNC, TNCA, TMA, 2.92mm, 3.5mm, 2.4mm, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.
Q3: Is free sample available for SMA RF Connector?
A: Yes, if have stock, free sample is available with freight collected.
Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.
Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.
Q6: What is the lead time of SMA RF Connector?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)
Q7: How will you deliver SMA RF Connector to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.
Q8: How long do I need to wait before my SMA RF Connector arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.
Q9: How is your SMA RF Connector quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.
Q10: What is your warranty of SMA RF Connector?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
