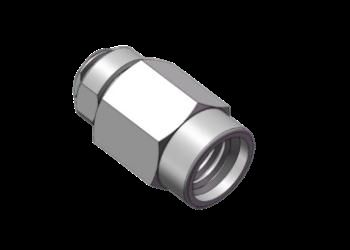

18GHz 50Ω Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable
|
جزئیات محصول:
پرداخت:
|
توضیحات محصول جزئیات
| نام محصول: | اتصال کابل مرد مستقیم SSMA | مدل: | SSMA-J506G-2 |
|---|---|---|---|
| دامنه فرکانس: | 0.3MHz-18GHz | امپدانس: | 50Ω |
| DWV: | 750 ولت | مقاومت عایق: | ≥5000MΩ |
| هادی مرکزی: | آلیاژ مس ، اندود طلا | کابل جفت گیری: | کابل CXN3506 |
| هادی بیرونی: | فولاد ضد زنگ ، انفعال | عایق ها: | PTFE |
| نمونه: | در انبار | ||
| برجسته کردن: | 18GHz SSMA male RF connector,50Ω stainless steel SMA plug,SSMA coaxial connector for CXN3506,50Ω stainless steel SMA plug,SSMA coaxial connector for CXN3506 |
||
50Ω Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz Mating for CXN3506 Flexible Cable
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-JB2G
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
